Elxir 66HD Specifications

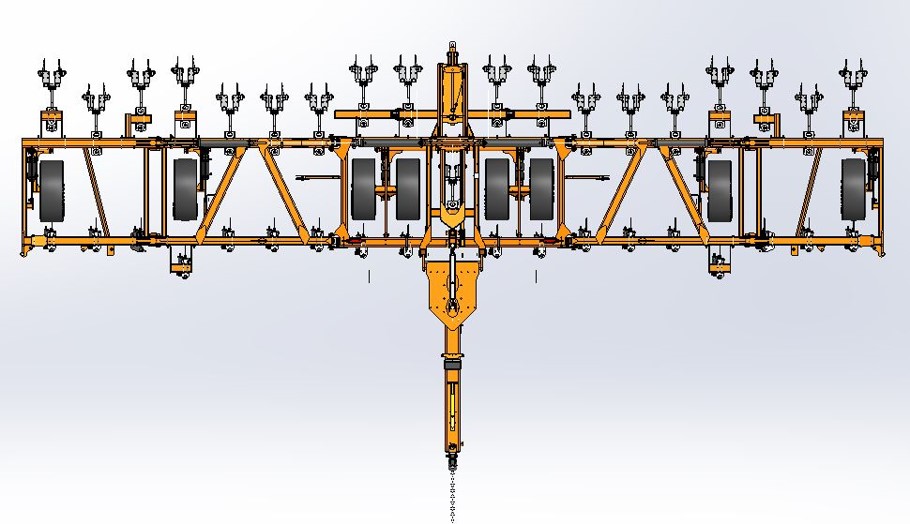

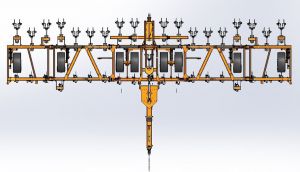

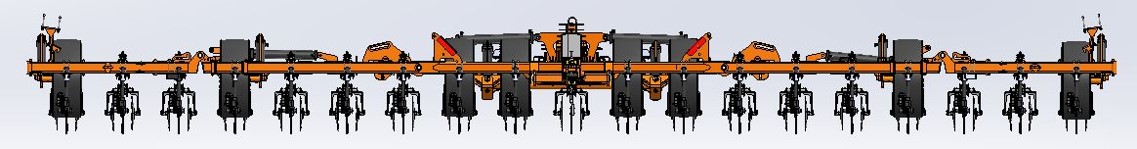

19 row @ 30" spacing

Transport Dimensions
Transport Width:

Transport Height:

Transport Clearance:

Transport Tires:



19” (579 cm)

13'6” (411 cm)

10.75" (27 cm)

a) 4 x 295/75R22.5

b) 4 x 385/65R22.5

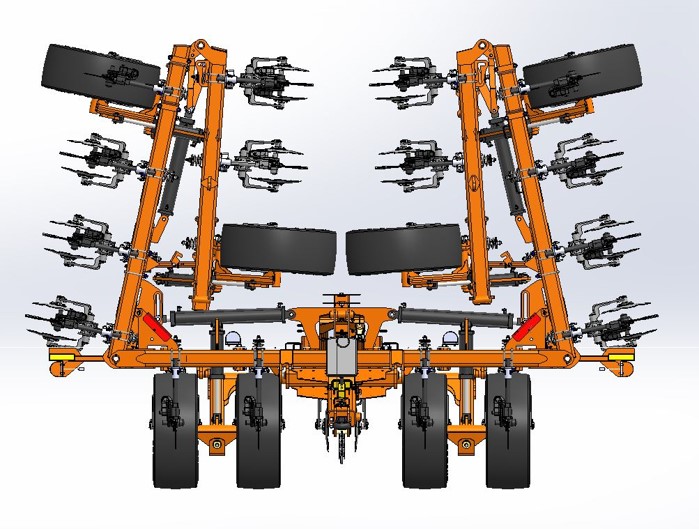

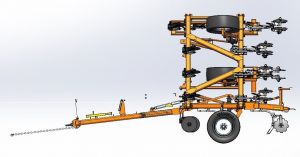

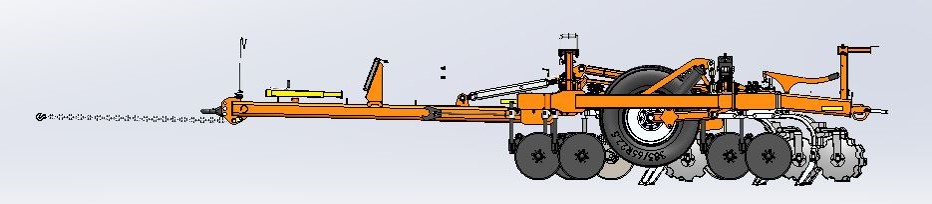

Transport Dimensions
Transport Length:

Transport Clearance:



24' (732 cm)

10.75"" (27 cm)



Working Depth:     8”-12” (20.3 cm – 30.5 cm)

See row units, shanks and knives for more details

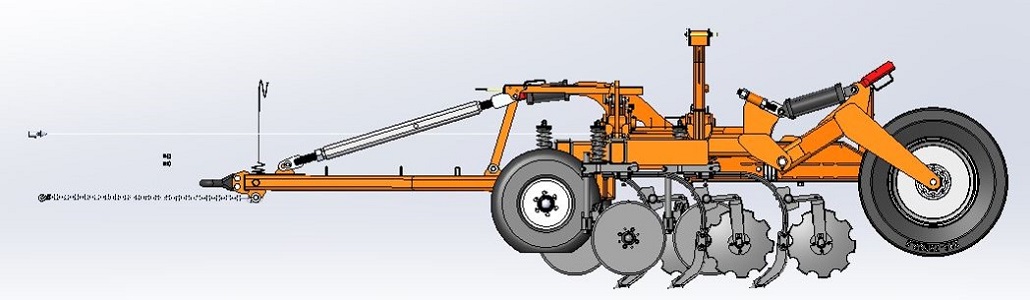

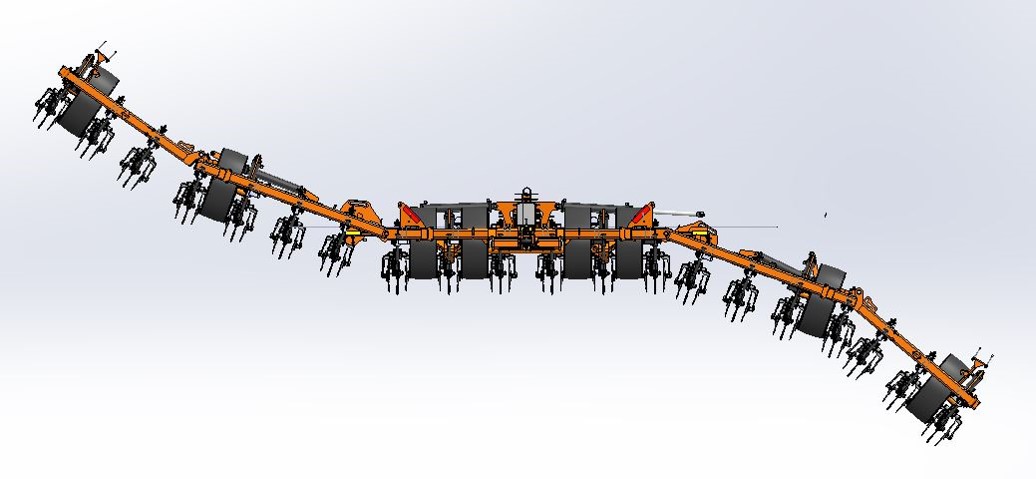

The Elxir66HD is a 5-section unit. This unit exclusively has large in-line tires inside the frame for depth
gauging.  It features 8 large in-line 295/75R22.5 tires or 385/65R22.5 tires in multiple configurations.

Tire Choices:
8 x 295/75R22.5 in-line tires OR,
4 x 295/75R22.5 center tires & 4 x 385/65R22.5 outside wing tires OR,
8 x 385/65R22.5 in-line tires OR,
4x385/65R22.5 center tires @ 2 x 295/75R22.5 outside wing tires.



Front to rear frame stagger is 66” (168 cm)

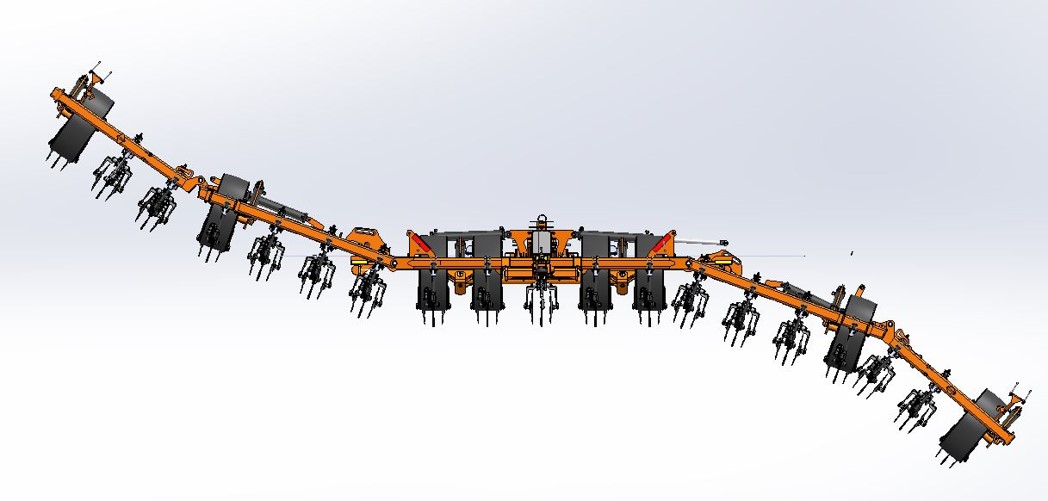

Down-flex inside wing:

20° or 41“ (104 cm)

Down-flex outside wing:

10° or 39" (99 cm)

Up-flex inside wing:

20° or 41“ (104 cm)

Up-flex outside wing:

15° or 46" (117 cm)

Combined up-flex:

87“ (221 cm)

Total down-flex:

80" (203 cm)

The Elxir 66HD is available for a number of fertilizer application methods.  Please browse our Knives and Shanks for configurations.

Elxir 66HD

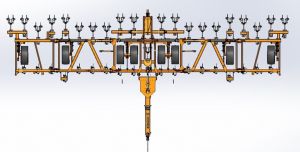

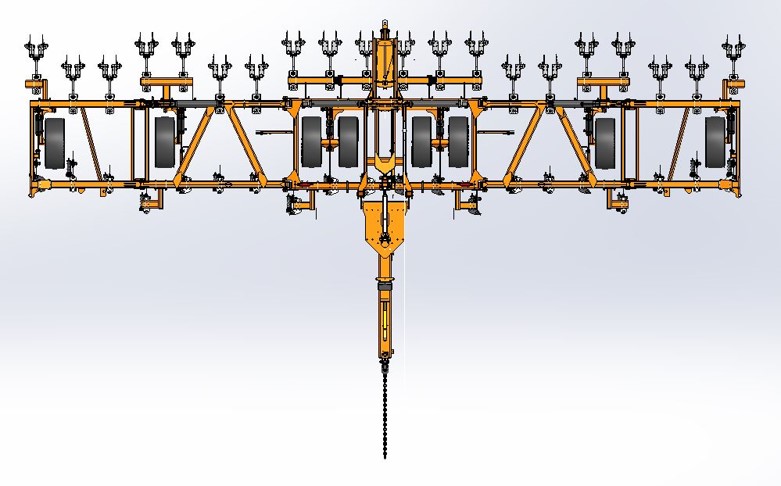

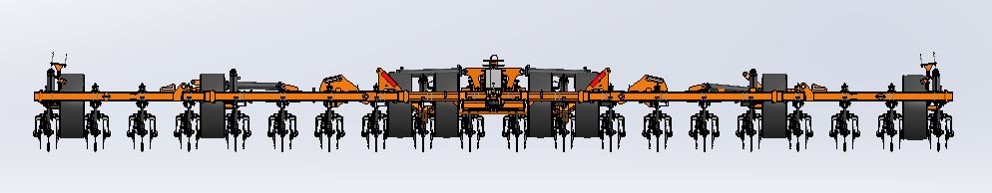

20 row @ 30" spacing

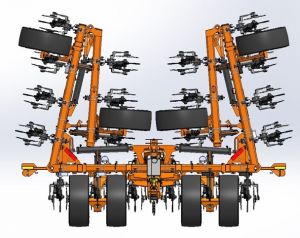

Transport Dimensions
Transport Width:

Transport Height:

Transport Clearance:

Transport Tires:



19” (579 cm)

13'6” (411 cm)

10.75" (27 cm)

a) 4 x 295/75R22.5

b) 4 x 385/65R22.5

Odd number of rows shown in picture

Transport Dimensions
Transport Length:

Transport Clearance:



24' (732 cm)

10.75"" (27 cm)



Working Depth:     8”-12” (20.3 cm – 30.5 cm)

See row units, shanks and knives for more details

The Elxir66HD is a 5-section unit. This unit exclusively has large in-line tires inside the frame for depth
gauging.  It features 8 large in-line 295/75R22.5 tires or 385/65R22.5 tires in multiple configurations.

Tire Choices:
8 x 295/75R22.5 in-line tires OR,
4 x 295/75R22.5 center tires & 4 x 385/65R22.5 outside wing tires OR,
8 x 385/65R22.5 in-line tires OR,
4x385/65R22.5 center tires @ 2 x 295/75R22.5 outside wing tires.



Front to rear frame stagger is 66” (168 cm)



Down-flex inside wing:

20° or 36“ (91 cm)

Down-flex outside wing:

10° or 52" (132 cm)

Up-flex inside wing:

20° or 36“ (91 cm)

Up-flex outside wing:

15° or 60" (152 cm)

Combined up-flex:

96“ (243 cm)

Total down-flex:

88" (223 cm)

The Elxir 66HD is available for a number of fertilizer application methods.  Please browse our Knives and Shanks for configurations.

Elxir 66HD

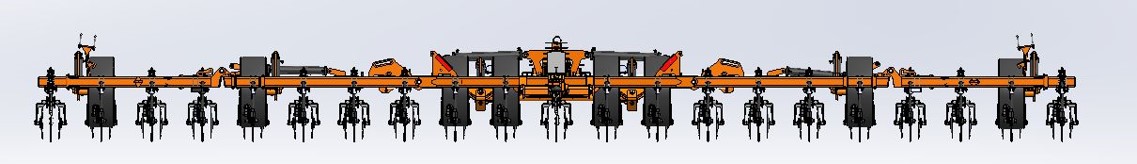

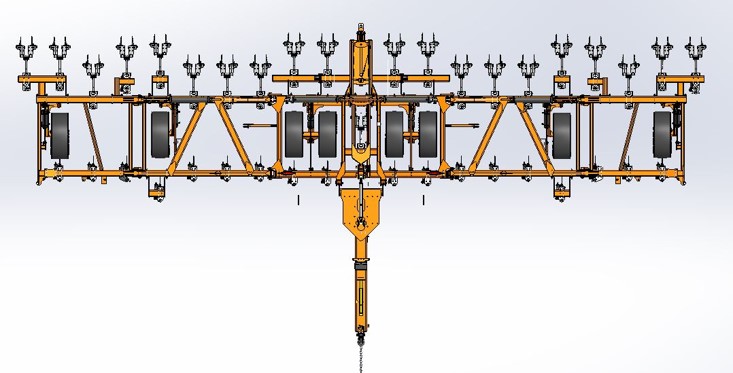

21 row @ 30" spacing

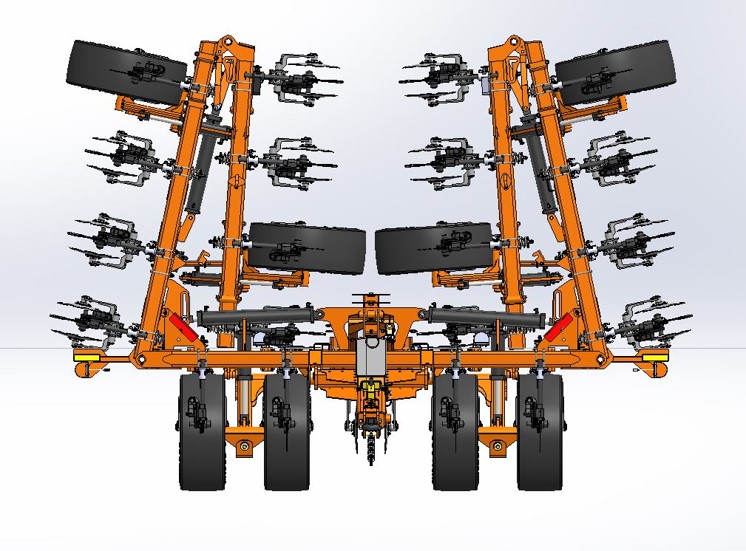

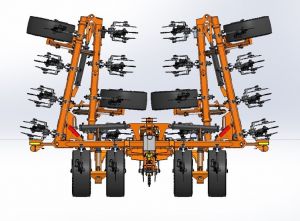

Transport Dimensions
Transport Width:

Transport Height:

Transport Clearance:

Transport Tires:



19” (579 cm)

13'6” (411 cm)

10.75" (27 cm)

a) 4 x 295/75R22.5

b) 4 x 385/65R22.5

Odd number of rows shown in picture

Transport Dimensions
Transport Length:

Transport Clearance:



24' (732 cm)

10.75"" (27 cm)



Working Depth:     8”-12” (20.3 cm – 30.5 cm)

See row units, shanks and knives for more details

The Elxir66HD is a 5-section unit. This unit exclusively has large in-line tires inside the frame for depth
gauging.  It features 8 large in-line 295/75R22.5 tires or 385/65R22.5 tires in multiple configurations.

Tire Choices:
8 x 295/75R22.5 in-line tires OR,
4 x 295/75R22.5 center tires & 4 x 385/65R22.5 outside wing tires OR,
8 x 385/65R22.5 in-line tires OR,
4x385/65R22.5 center tires @ 2 x 295/75R22.5 outside wing tires.



Front to rear frame stagger is 66” (168 cm)



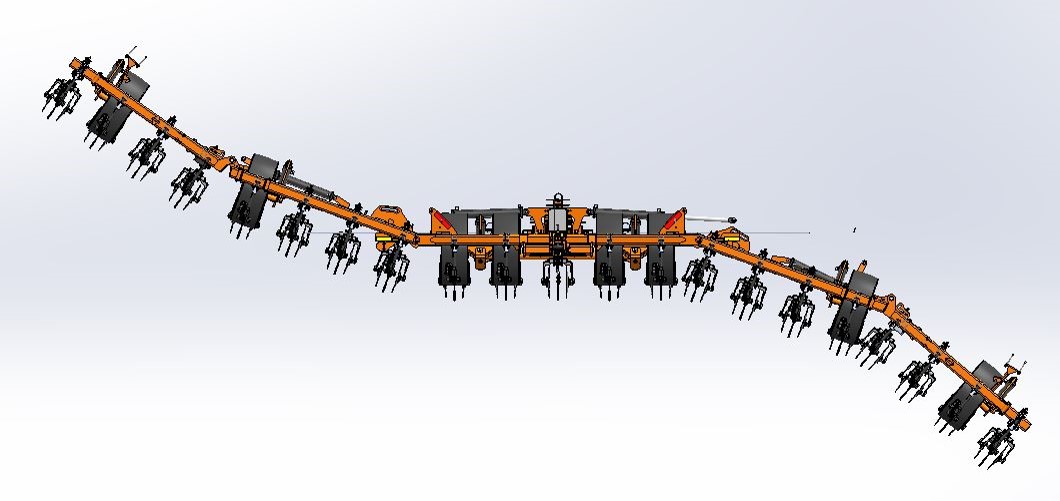

Down-flex inside wing:

20° or 41“ (104 cm)

Down-flex outside wing:

10° or 54" (137 cm)

Up-flex inside wing:

20° or 41“ (104 cm)

Up-flex outside wing:

15° or 64" (163 cm)

Combined up-flex:

105“ (267 cm)

Total down-flex:

95" (241 cm)

The Elxir 66HD is available for a number of fertilizer application methods.  Please browse our Knives and Shanks for configurations.
