Elxir 66 Specifications

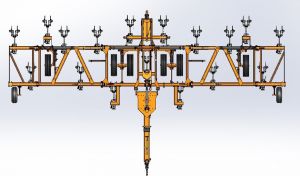

16 row @ 30" spacing

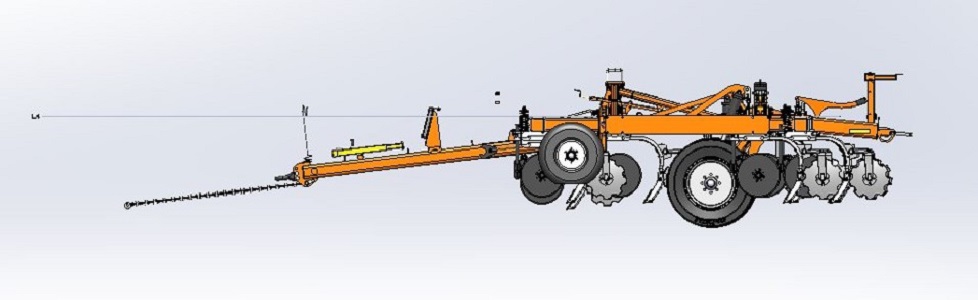

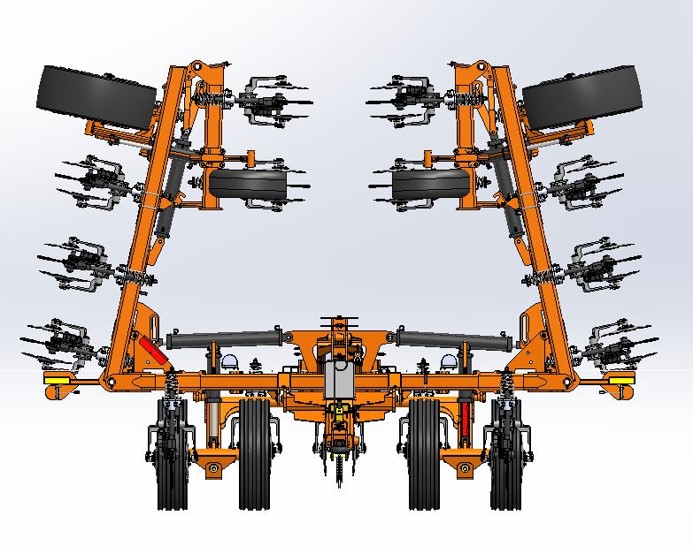

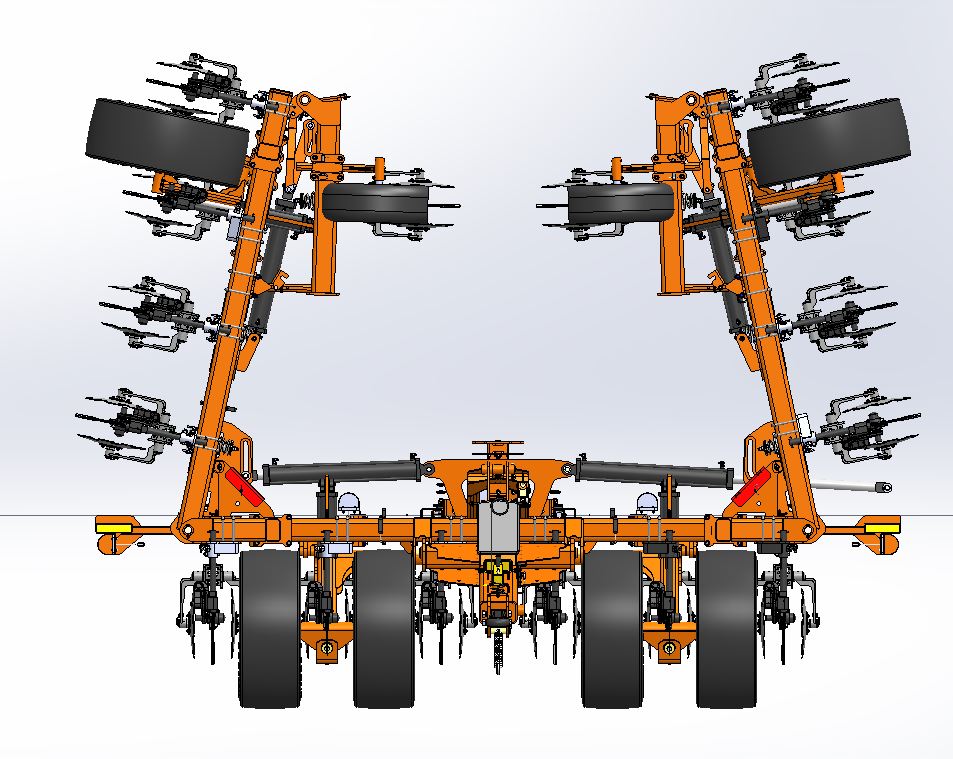

Transport Dimensions
Transport Width:

Transport Height:

Transport Clearance:

Transport Tires:

19” (579 cm)

13'6” (411 cm)

10.75" (27 cm)

a) 4 x 295/75R22.5

b) 4 x 385/65R22.5

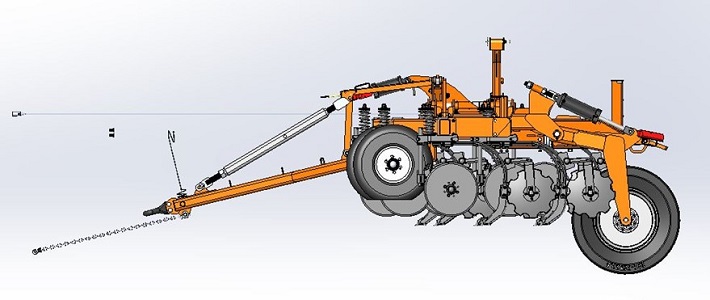

Transport Dimensions
Transport Length:

Transport Clearance:

24' (732 cm)

10.75"" (27 cm)

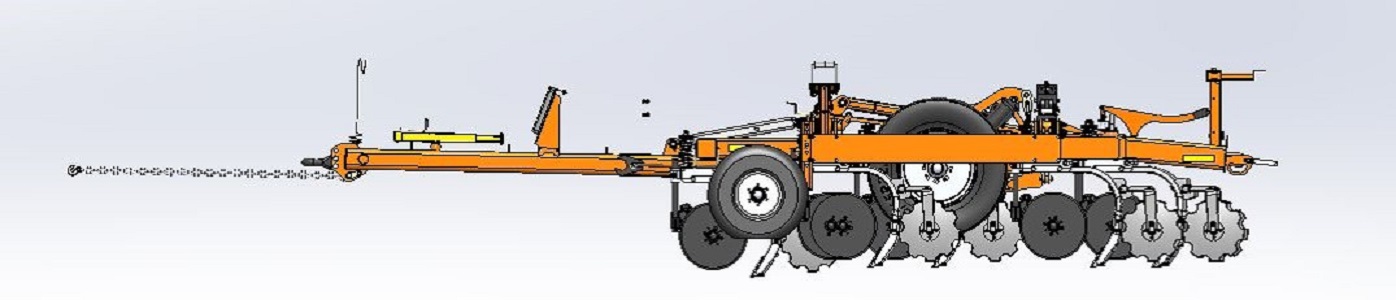

Working Depth: 8”-12” (20.3 cm – 30.5 cm)

See row units, shanks and knives for more details

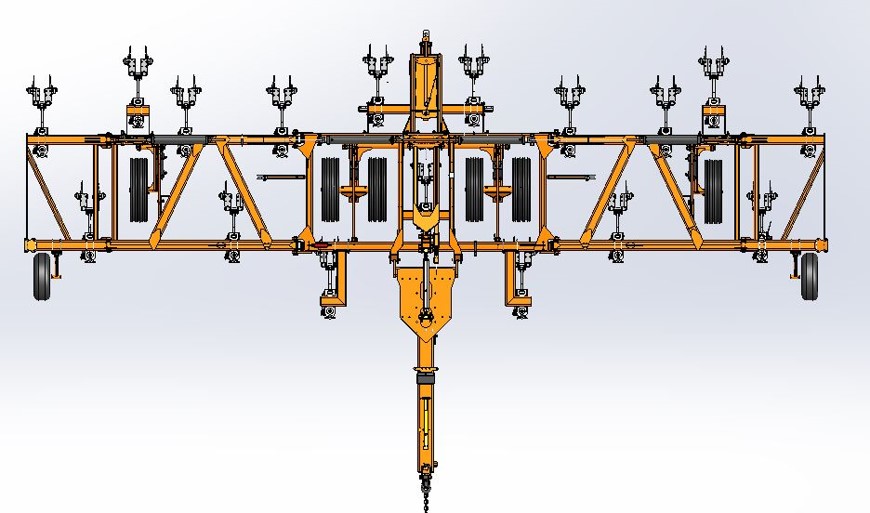

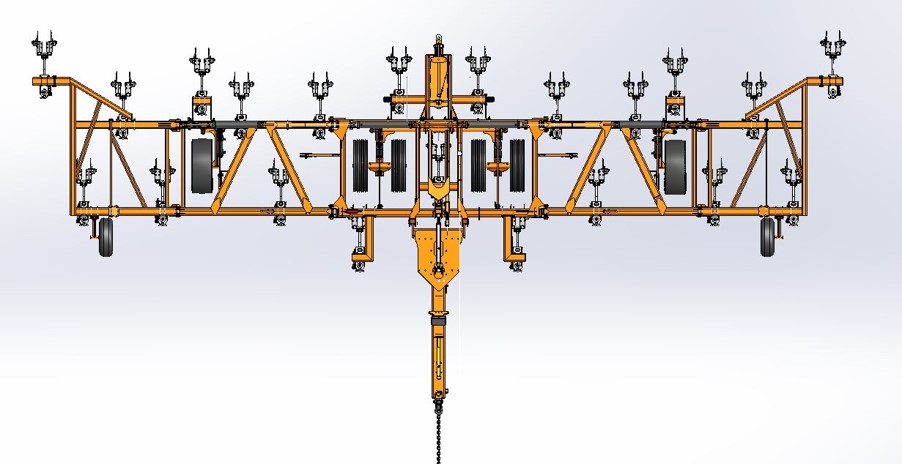

The Elxir66 is a 5-section unit with 6 large in-line tires and two smaller 11L-14 front gauge wheels.

The gauge wheel depth can be set in ¾” (1.9 cm) increments. The two sizes available for the in-line
tires are 385/65R22.5 or 295/75R22.5.

Tire Choices:
6 x 295/75R22.5 in-line tires OR,
4 x 295/75R22.5 center tires & 2 x 385/65R22.5 outside wing tires OR,
6 x 385/65R22.5 in-line tires OR,
4 x 385/65R22.5 center tires @ 2 x 295/75R22.5 outside wing tires.

One each 11L-14/8 ground engaging tire on the front, outside
wing for depth control. Adjusts depth in ¾” (1.9 cm) increments.

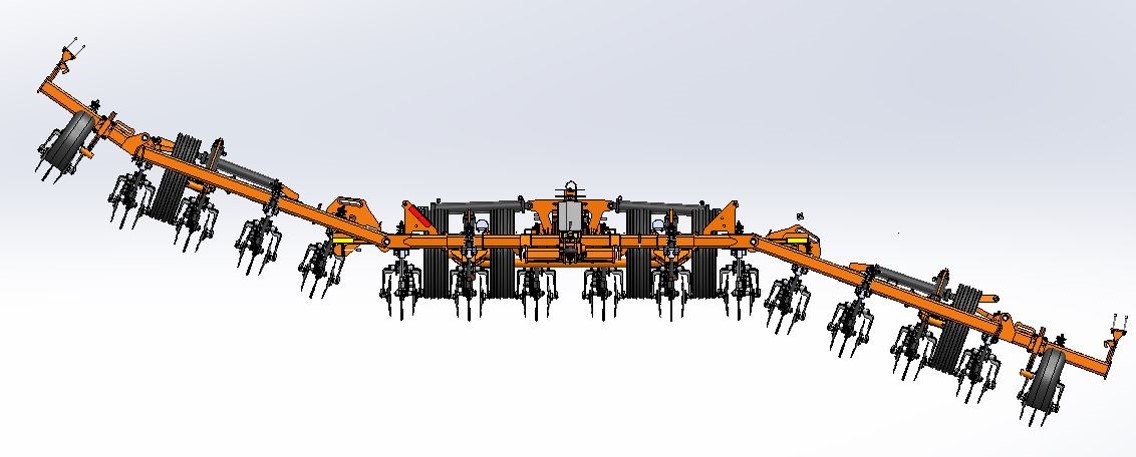

Front to rear frame stagger is 66” (168 cm)

Down-flex inside wing:

20° or 41“ (104 cm)

Down-flex outside wing:

0°

Up-flex inside wing:

20° or 41“ (104 cm)

Up-flex outside wing:

15° or 21“ (53 cm)

Combined up-flex:

62“ (157 cm)

Total down-flex:

51" (130 cm)

The Elxir 66 is available for a number of fertilizer application methods. Please browse our Knives and Shank s for configurations.

Elxir 66

17 row @ 30" spacing

Transport Dimensions
Transport Width:

Transport Height:

Transport Clearance:

Transport Tires:

19” (579 cm)

13'6” (411 cm)

10.75" (27 cm)

a) 4 x 295/75R22.5

b) 4 x 385/65R22.5

Transport Dimensions
Transport Length:

Transport Clearance:

24' (732 cm)

10.75"" (27 cm)

Working Depth: 8”-12” (20.3 cm – 30.5 cm)

See row units, shanks and knives for more details

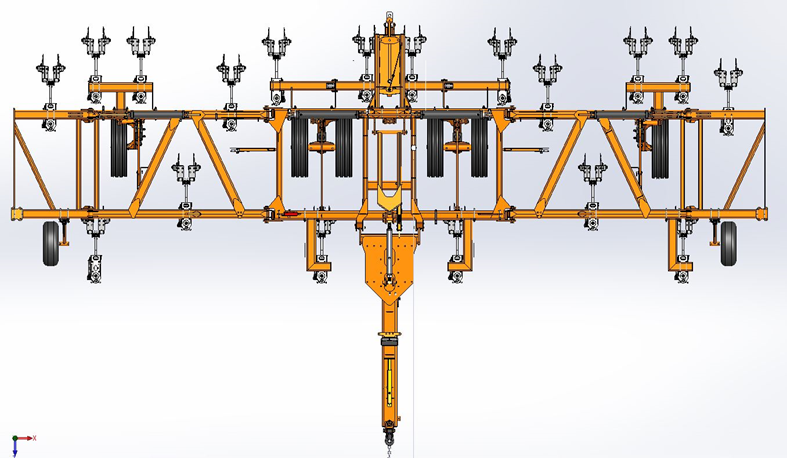

The Elxir66 is a 5-section unit with 6 large in-line tires and two smaller 11L-14 front gauge wheels.

The gauge wheel depth can be set in ¾” (1.9 cm) increments. The two sizes available for the in-line
tires are 385/65R22.5 or 295/75R22.5.

One each 11L-14/8 ground engaging tire on the front, outside
wing for depth control. Adjust depth in ¾” (1.9 cm) increments.

Front to rear frame stagger is 66” (168 cm)

Down-flex inside wing:

20° or 36“ (91 cm)

Down-flex outside wing:

0°

Up-flex inside wing:

20° or 36“ (91 cm)

Up-flex outside wing:

15° or 34“ (86 cm)

Combined up-flex:

70“ (178 cm)

Total down-flex:

56" (142 cm)

The Elxir 66 is available for a number of fertilizer application methods. Please browse our Knives and Shank s for configurations.

Elxir 66

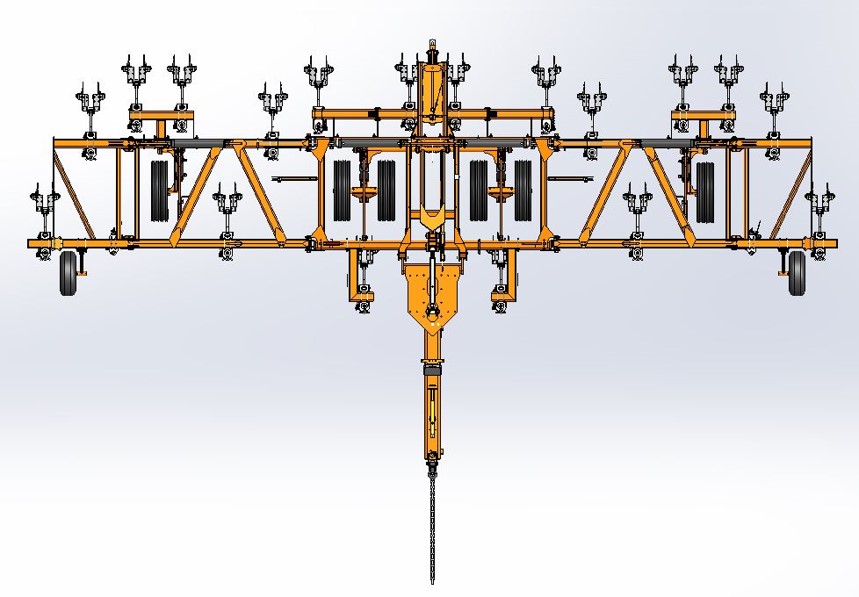

18 row @ 30" spacing

Transport Dimensions
Transport Width:

Transport Height:

Transport Clearance:

Transport Tires:

19” (579 cm)

13'6” (411 cm)

10.75" (27 cm)

a) 4 x 295/75R22.5

b) 4 x 385/65R22.5

Transport Dimensions
Transport Length:

Transport Clearance:

24' (732 cm)

10.75"" (27 cm)

Working Depth: 8”-12” (20.3 cm – 30.5 cm)

See row units, shanks and knives for more details

The Elxir66 is a 5-section unit with 6 large in-line tires and two smaller 11L-14 front gauge wheels.

The gauge wheel depth can be set in ¾” (1.9 cm) increments. The two sizes available for the in-line
tires are 385/65R22.5 or 295/75R22.5.

One each 11L-14/8 ground engaging tire on the front, outside
wing for depth control. Adjusts depth in ¾” (1.9 cm) increments.

Front to rear frame stagger is 66” (168 cm)

Down-flex inside wing:

20° or 41“ (104 cm)

Down-flex outside wing:

0°

Up-flex inside wing:

20° or 41“ (104 cm)

Up-flex outside wing:

15° or 38“ (97 cm)

Combined up-flex:

79“ (201 cm)

Total down-flex:

61" (155 cm)

The Elxir 66 is available for a number of fertilizer application methods. Please browse our Knives and Shank s for configurations.

Elxir 66

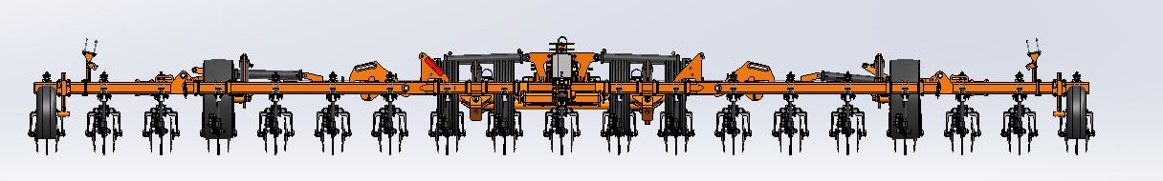

19 row @ 30" spacing

Transport Dimensions
Transport Width:

Transport Height:

Transport Clearance:

Transport Tires:

19” (579 cm)

13'6” (411 cm)

10.75" (27 cm)

a) 4 x 295/75R22.5

b) 4 x 385/65R22.5

Transport Dimensions
Transport Length:

Transport Clearance:

24' (732 cm)

10.75"" (27 cm)

Working Depth: 8”-12” (20.3 cm – 30.5 cm)

See row units, shanks and knives for more details

The Elxir66 is a 5-section unit with 6 large in-line tires and two smaller 11L-14 front gauge wheels.

The gauge wheel depth can be set in ¾” (1.9 cm) increments. The two sizes available for the in-line
tires are 385/65R22.5 or 295/75R22.5.

One each 11L-14/8 ground engaging tire on the front, outside
wing for depth control. Adjusts depth in ¾” (1.9 cm) increments.

Front to rear frame stagger is 66” (168 cm)

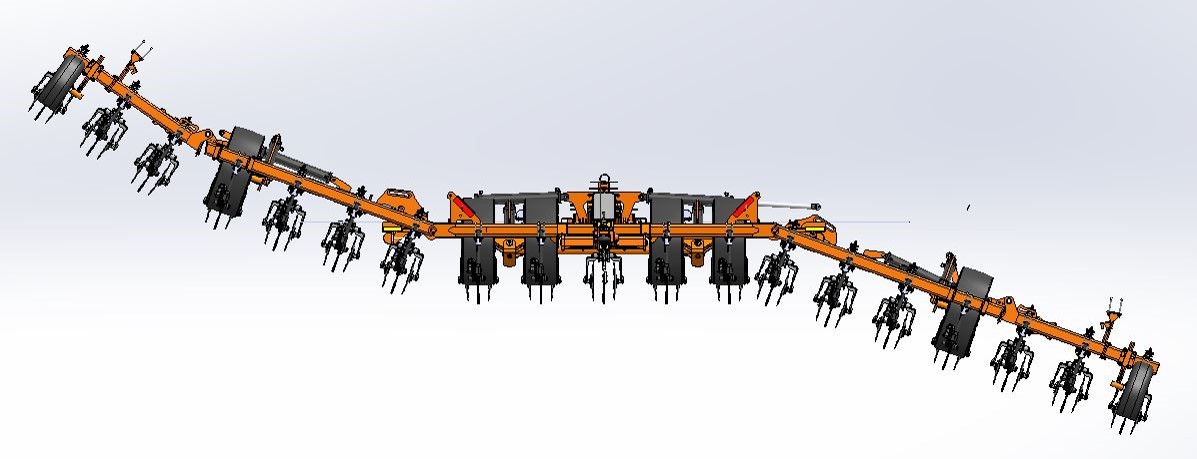

Down-flex inside wing:

20° or 36“ (91 cm)

Down-flex outside wing:

0°

Up-flex inside wing:

20° or 36“ (91 cm)

Up-flex outside wing:

15° or 51“ (130 cm)

Combined up-flex:

87“ (221 cm)

Total down-flex:

67" (170 cm)

The Elxir 66 is available for a number of fertilizer application methods. Please browse our Knives and Shank s for configurations.

Elxir 66

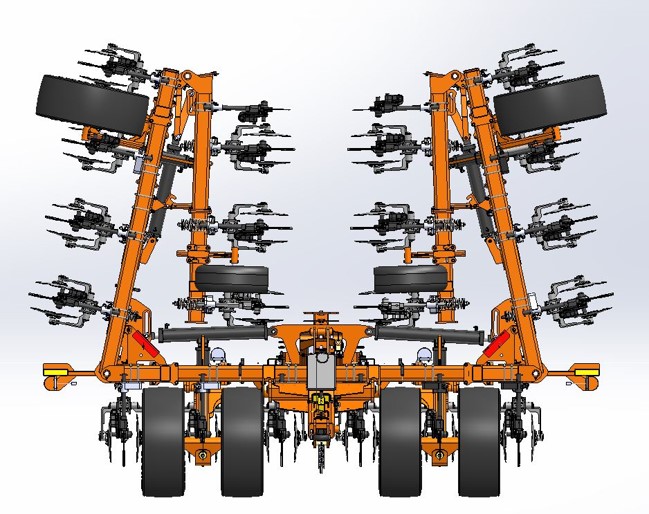

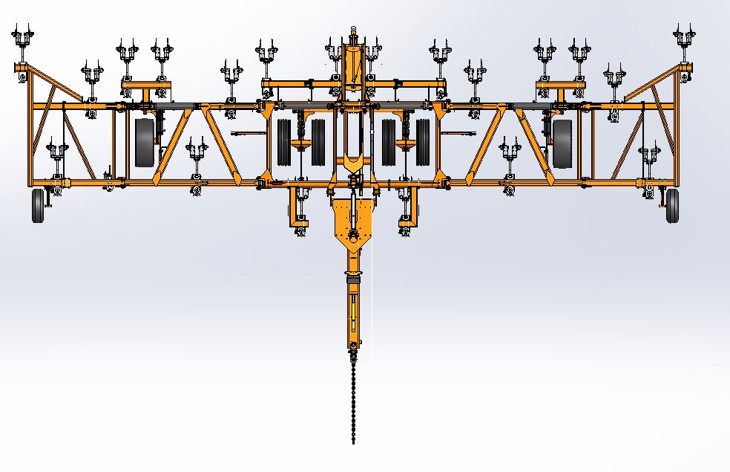

20 row @ 30" spacing

Transport Dimensions
Transport Width:

Transport Height:

Transport Clearance:

Transport Tires:

19” (579 cm)

13'6” (411 cm)

10.75" (27 cm)

a) 4 x 295/75R22.5

b) 4 x 385/65R22.5

Transport Dimensions
Transport Length:

Transport Clearance:

24' (732 cm)

10.75"" (27 cm)

Working Depth: 8”-12” (20.3 cm – 30.5 cm)

See row units, shanks and knives for more details

The Elxir66 is a 5-section unit with 6 large in-line tires and two smaller 11L-14 front gauge wheels.

The gauge wheel depth can be set in ¾” (1.9 cm) increments. The two sizes available for the in-line
tires are 385/65R22.5 or 295/75R22.5.

One each 11L-14/8 ground engaging tire on the front, outside
wing for depth control. Adjusts depth in ¾” (1.9 cm) increments.

Front to rear frame stagger is 66” (168 cm)

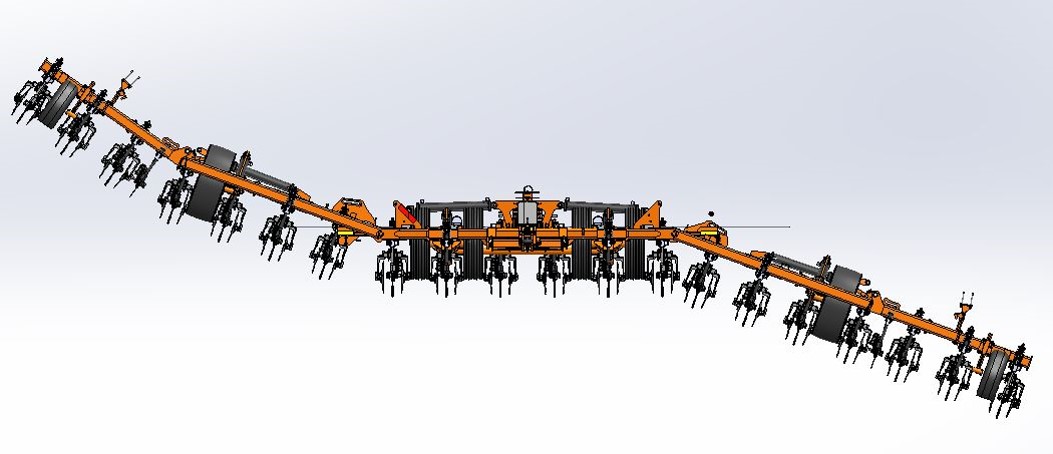

Down-flex inside wing:

20° or 41“ (104 cm)

Down-flex outside wing:

0°

Up-flex inside wing:

20° or 41“ (104 cm)

Up-flex outside wing:

15° or 55“ (140 cm)

Combined up-flex:

96“ (244 cm)

Total down-flex:

72" (183 cm)

The Elxir 66 is available for a number of fertilizer application methods. Please browse our Knives and Shank s for configurations.

Elxir 66

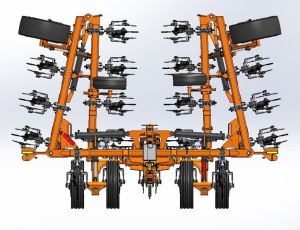

21 row @ 30" spacing

Transport Dimensions
Transport Width:

Transport Height:

Transport Clearance:

Transport Tires:

19” (579 cm)

13'6” (411 cm)

10.75" (27 cm)

a) 4 x 295/75R22.5

b) 4 x 385/65R22.5

Transport Dimensions
Transport Length:

Transport Clearance:

24' (732 cm)

10.75"" (27 cm)

Working Depth: 8”-12” (20.3 cm – 30.5 cm)

See row units, shanks and knives for more details

The Elxir66 is a 5-section unit with 6 large in-line tires and two smaller 11L-14 front gauge wheels.

The gauge wheel depth can be set in ¾” (1.9 cm) increments. The two sizes available for the in-line
tires are 385/65R22.5 or 295/75R22.5.

One each 11L-14/8 ground engaging tire on the front, outside
wing for depth control. Adjusts depth in ¾” (1.9 cm) increments.

Front to rear frame stagger is 66” (168 cm)

Down-flex inside wing:

20° or 36“ (91 cm)

Down-flex outside wing:

0°

Up-flex inside wing:

20° or 36“ (91 cm)

Up-flex outside wing:

15° or 69“ (175 cm)

Combined up-flex:

105“ (266 cm)

Total down-flex:

77" (196 cm)

The Elxir 66 is available for a number of fertilizer application methods. Please browse our Knives and Shank s for configurations.
